iOS Picture In Picture Button Appearing in the top left of the video player

DEVELOPING APPS NATIVELY PAYS OFF GREATLY

Enabling the Fancy iOS Picture In Picture Video Player on Xamarin

Apple has simplified PIP implementation in iOS 14

Implementation

  1. Add the snippet below to your AppDelegate FinishedLaunching() above your return statement. Make sure that you use the right AVAudioSessionCategory because the PIP controller disappears depending on the category:
var audioSession = AVAudioSession.SharedInstance();
NSError nSError = new NSError();
audioSession.SetCategory(AVAudioSessionCategory.Playback);
audioSession.SetActive(true, AVAudioSessionSetActiveOptions.NotifyOthersOnDeactivation, out nSError);
Info.plist PIP Background mode selected

2. And then go to your Info.plist and in the application tab, Enable Background Modes and check the Picture in Picture mode, and that shall automatically add the required key to your Source tab.

Et puts voilà! After you implement these 2 short steps, just build your app onto your phone, play your video and then press the Home button. Your video will transform into the fancy PIP view! You can also test this using the sample GitHub repo I created.

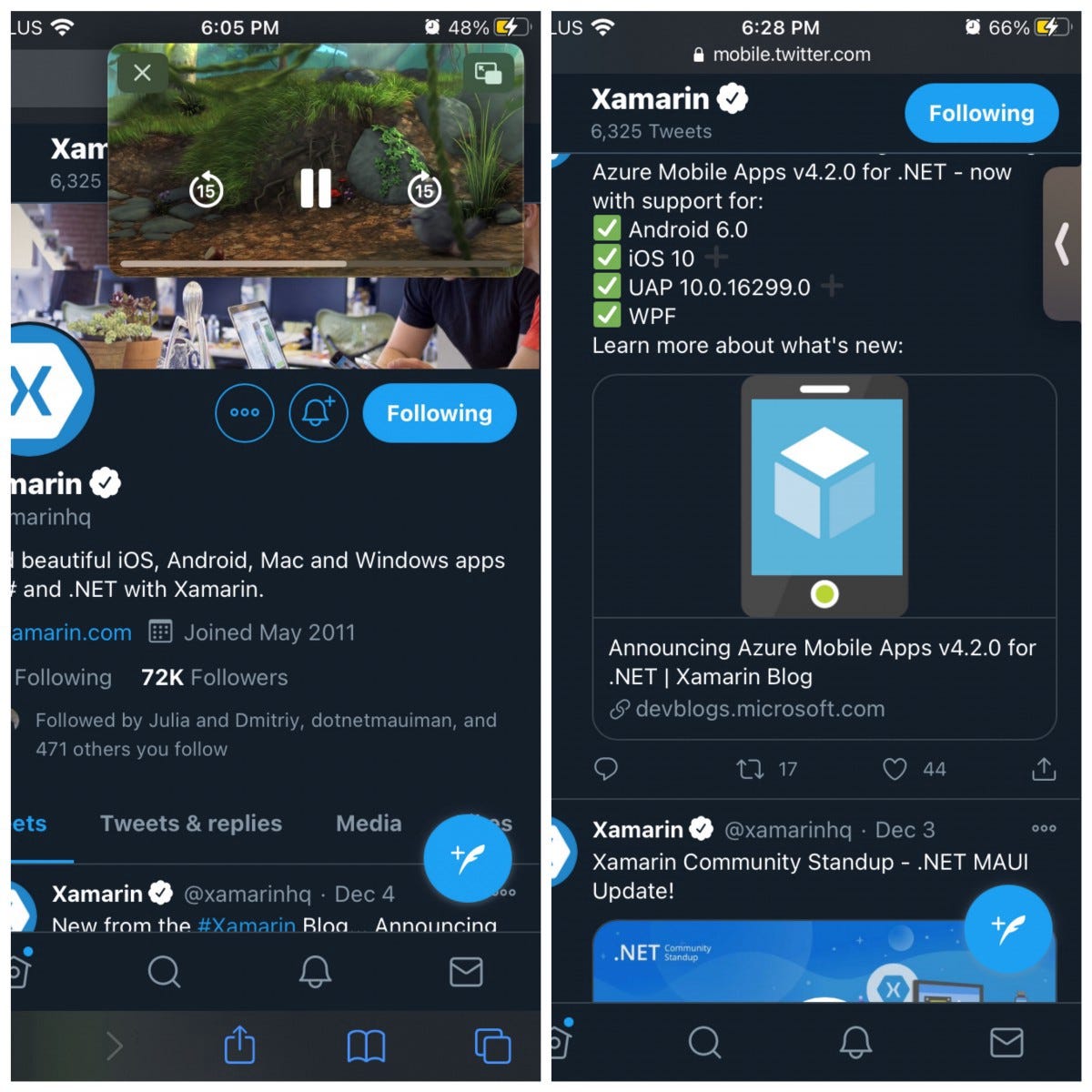

Entering the PIP view automatically creates a screen with this message
Swiping the video to the right hides the video

Behavior

This section is for people curious about the behavior, but they would rather not clone and build the sample. There’s a few points to note about the behavior:

  1. If the video is playing in the app, you just need to press the home button and it will start. You do not need to tap on the PIP button.
  2. Once playing in the background, you can simply hide the video temporarily by swiping it to the right and it will show an arrow on the screen
  3. There’s only a few default places on the screen you can pin the video to keep playing from which you can’t change.
  4. You can also launch PIP within the app by tapping the PIP icon on the top left of the video controls that automatically is displayed by iOS.
  5. This works since we are using a non-customized AVPlayer for our video, so it may not work with other video libraries.
  6. Video calls with PIP use private API, only available for FaceTime.
